The LightWave PIXX RGBW LED Sheet combines full RGB color with a 5000K white channel, providing both creative and functional lighting. Compact yet powerful, it features 800 LEDs, delivering 810 lumens at 35W, and offers a CRI of over 80 for accurate color rendering—ideal for signage, retail, stage, and hospitality applications.

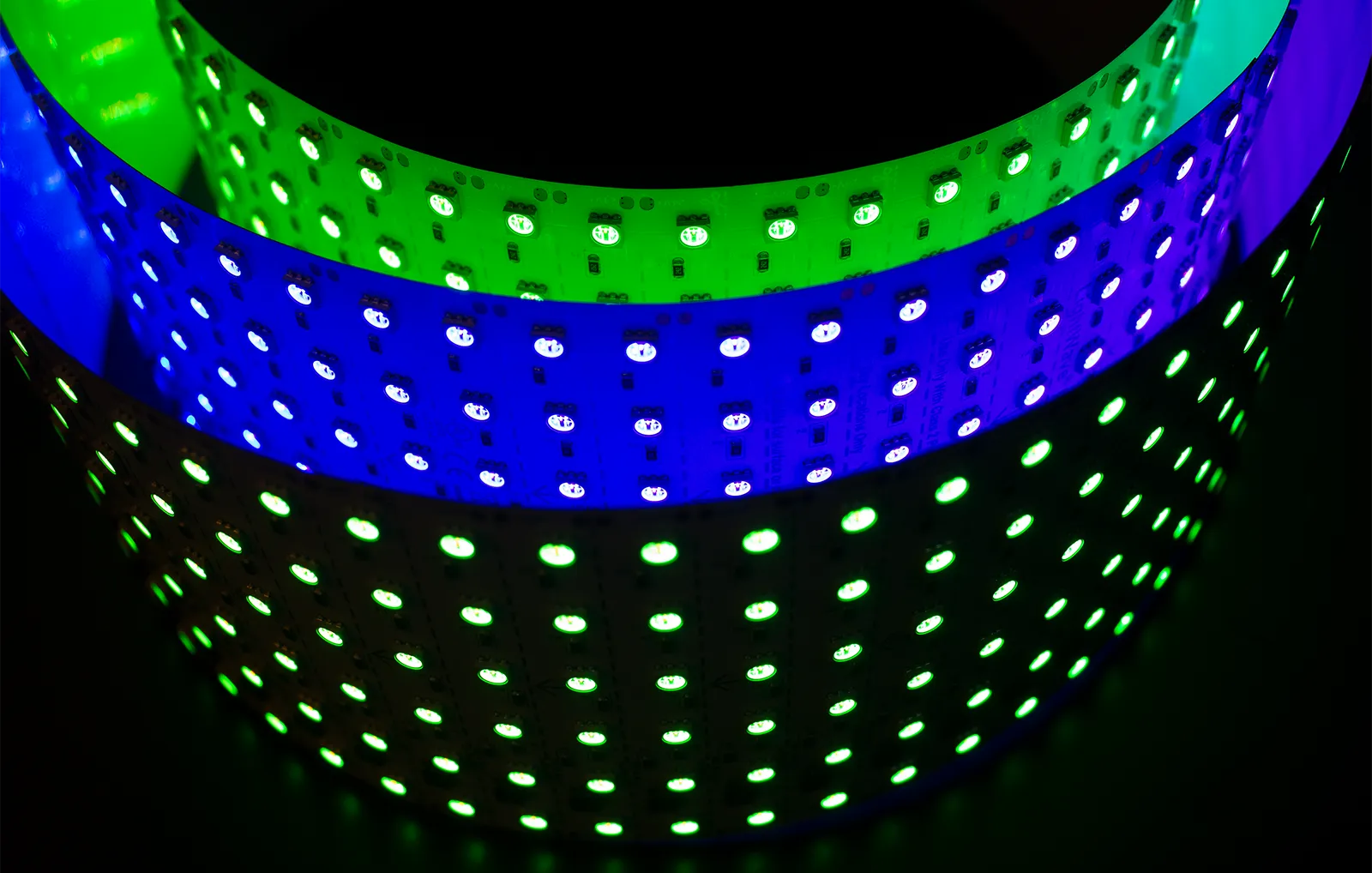

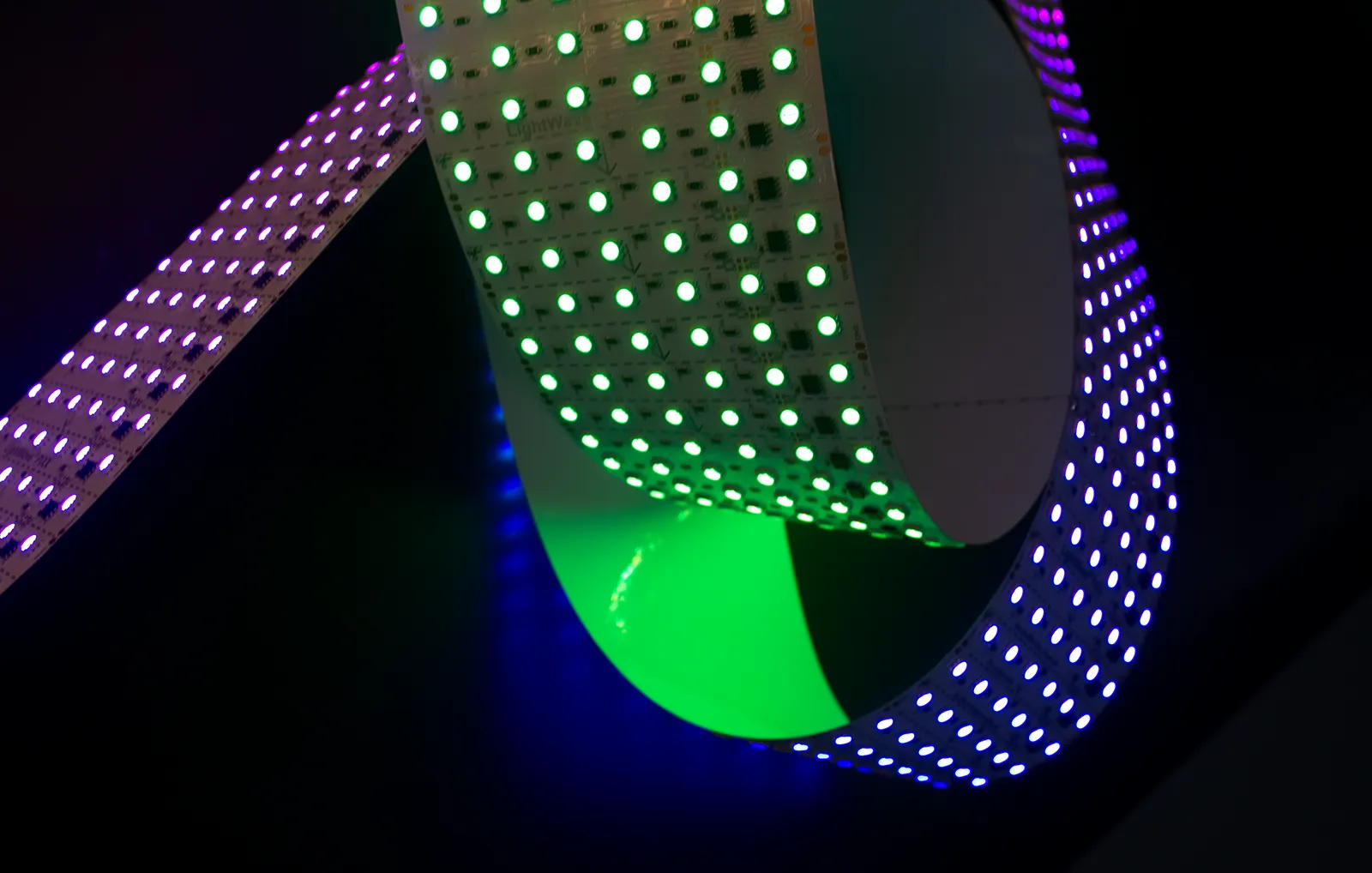

LightWave PIXX RGBW Flexible LED Sheet
Out of stock
Description
The LightWave PIXX RGBW LED Sheet combines full RGB color mixing with a crisp 5000K white channel, providing designers with complete control over both creative and functional lighting. Built in a compact 9.25’’ x 19.8’’ sheet format, it’s ideal for signage, retail environments, stage sets, and hospitality spaces.
With a powerful 35W draw, high LED density of 800 LEDs per sheet, and a CRI of >80 at 5000K, the PIXX RGBW Sheet delivers professional performance with vibrant illumination.
Key Features
- RGB + 5000K White – Combine decorative color with functional white light
- Compact 9.25’’ x 19.8’’ Sheet – Fits into small or intricate spaces
- High-Density LED Array (800 LEDs) – Uniform, smooth light distribution
- Strong Output (810 lumens at 5000K) – Bright enough for professional installs
- CRI >80 at 5000K – Reliable white light rendering
- Flexible & Thin – Easy to integrate into signage or architectural elements
Technical Specifications
| Specification | Details |
| Size | 9.25’’ x 19.8’’ (235 x 503mm) |
| Type | Flexible LED Sheet |
| Color | RGB + 5000K White |
| Power Consumption | 35W |
| Power / Area | 27.5W/sqft • 295W/m² |
| Efficiency | — |
| Light Output | 5000K: 810 lumens |
| Light Output / Area | 5000K: 635 lm/sqft • 6852 lm/m² |
| CRI | >80 (5000K) |
| LED Quantity | 800 (4 x 200) |
| LED Density | 628 LEDs/sqft • 6768 LEDs/m² |
Applications
- Signage & Branding – Mix RGB with white for impactful brand visuals
- Stage & Entertainment – Compact sheet format for stage props or sets
- Retail Displays – Add energy and brightness to product showcases
- Hospitality Lighting – Create dynamic moods in clubs, lounges, or hotels
